BlueEye™ Cabinet Solution – Tailored control of pressure and flowrate for indoors and outdoor safe and quick installation
BlueEye™ Cabinet Solution – Description

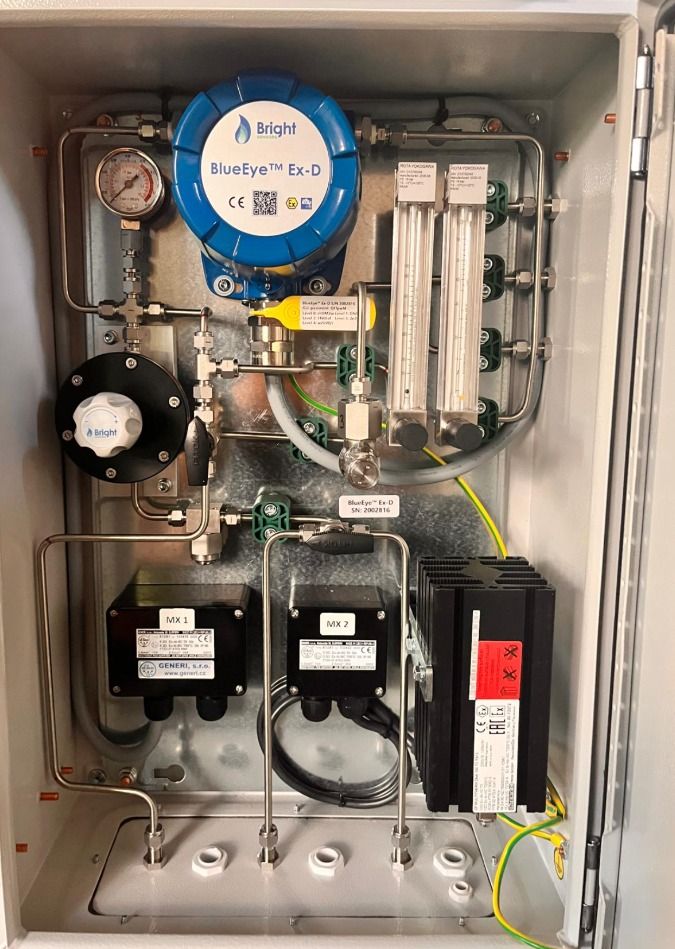

- Heated cabinet dimensions: 600 x 400 x 210 mm

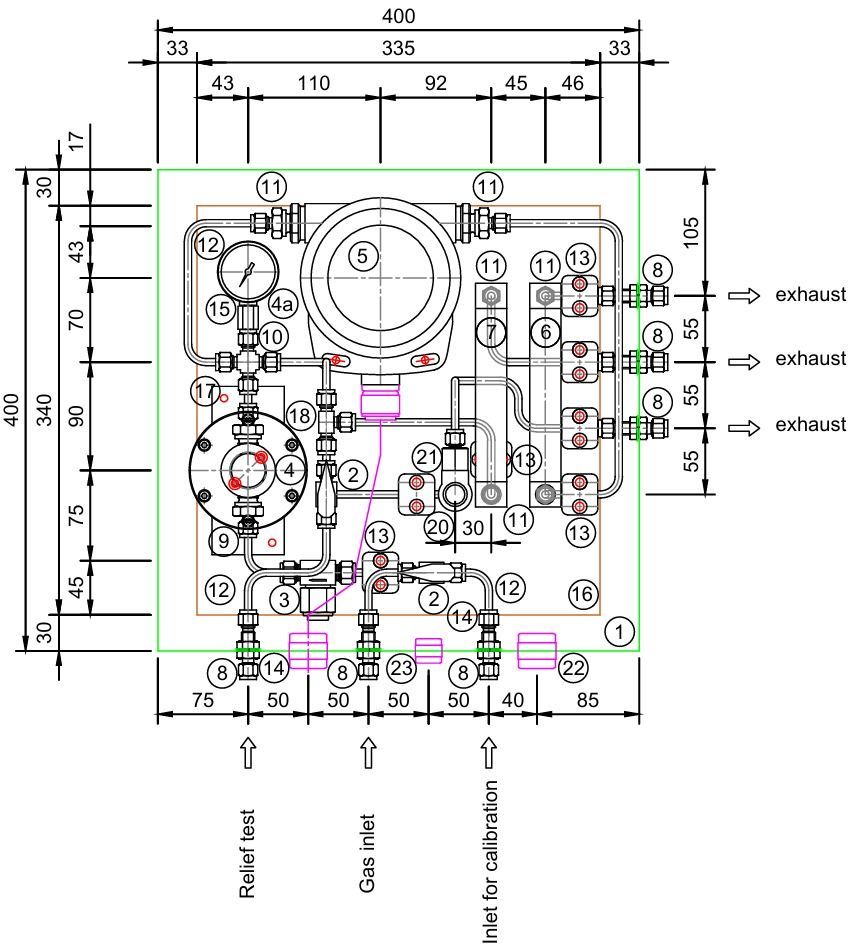

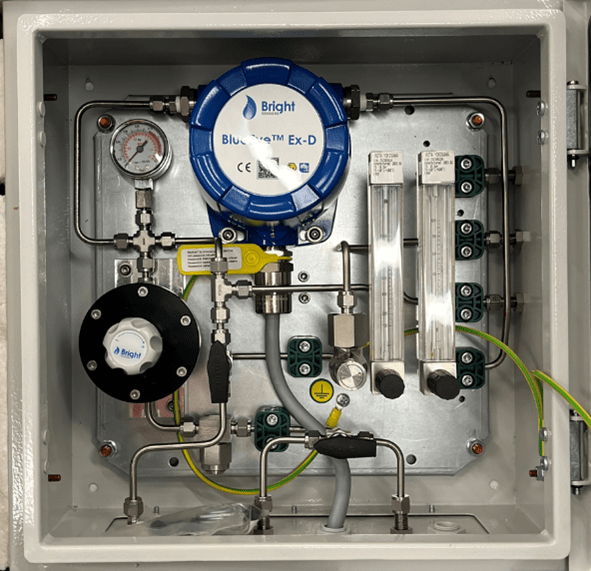

- Non heated cabinet dimensions: 400 x 400 x 210 mm
- Maximum inlet pressure: 50 bar(g)
- External compression tube fittings in 6 mm or ¼ inch
- Rotameter BlueEye™ Ex-D: 0 – 100 ml/min
- Bypass rotameter: 0 – 1000 ml/min eliminating response time delay
- Safety Relieve Valve (SRV): opening at 250 mbar(g)
- 3 gas inlets: Process gas, validation gas and SRV test gas

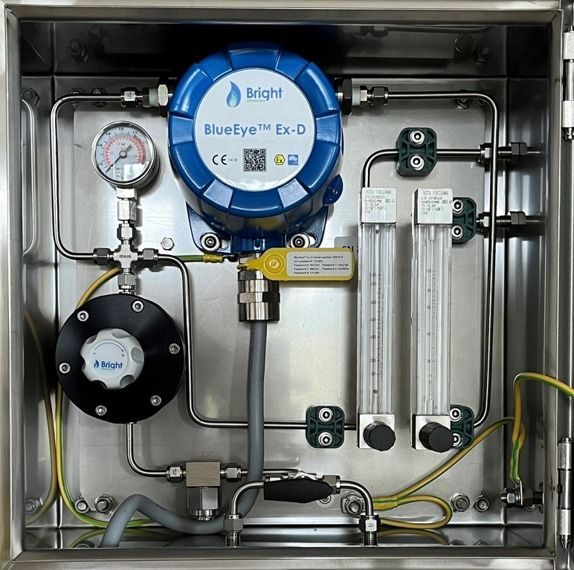

- Powder coated or stainless steel cabinet
BlueEye™ Cabinet Solution – Specification
BlueEye™ IoT (in development) – Description
- The ULTRA compact and accurate BlueEye™ OEM gas analyzer works on Bright Sensors‘ patented Dynamic Viscosity measurement principle which correlates to the Wobbe Index, Lower and Higher Heating Value. It is specifically developed to be extremely reliable, costs 1/20th of a low spec Gas Chromatograph without OPEX, and can be powered by and communicate via USB.
- Perfectly suitable for off grid, mobile, point of use, testing, validation and energy allocation purposes. Application examples: boiler tuning (commissioning and maintenance) and grid monitoring.
