BlueEye™ Mobile – Compact and robust portable analyzer powered by mobile phone or tablet
BlueEye™ Mobile – Description
- The compact and robust BlueEye™ Mobile has been designed for mobile and handheld use.
- Build in pressure regulator, purge line and flow restriction allows setup in minutes.

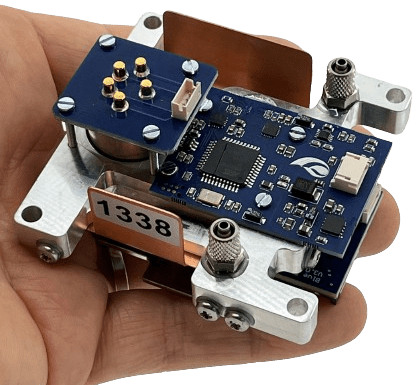

- Patented dynamic viscosity measurement principle combined with TCD and IR sensors.
- Continuous, fast response and highly accurate measurement.
- Wide composition range (Hs: 27.52 – 50.40 MJ/m3 at 15°C/15°C).
- Ultra-fast sampling rate, reporting gas properties: Hs, Hi, WIs, WIi, ρ, ρ rel., Z, AFR, s-AFR, MN, CO2 and H2
- Accurate Hydrogen measurement up to 30 mol% blends.
- Battery powered allowing up to 24h of continuous measurement, highly effective and very affordable.
- Single-hand operated shut-off quick couplings ensure easy, fast and safe connections to any gas source.

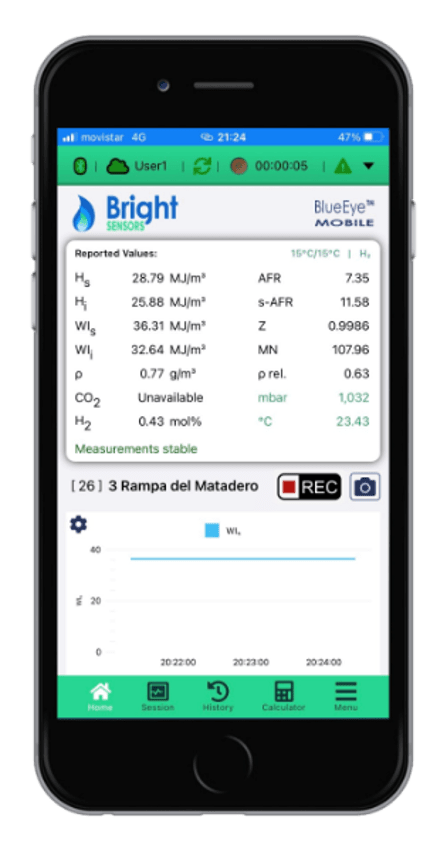

- Plug & Play operation and connectivity via Bluetooth® to dedicated iOS and Android Apps.

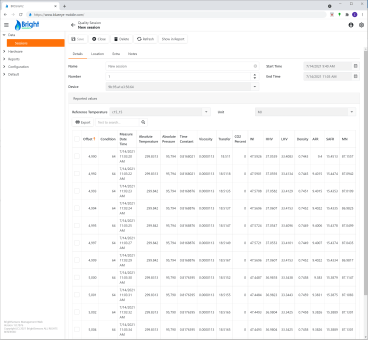

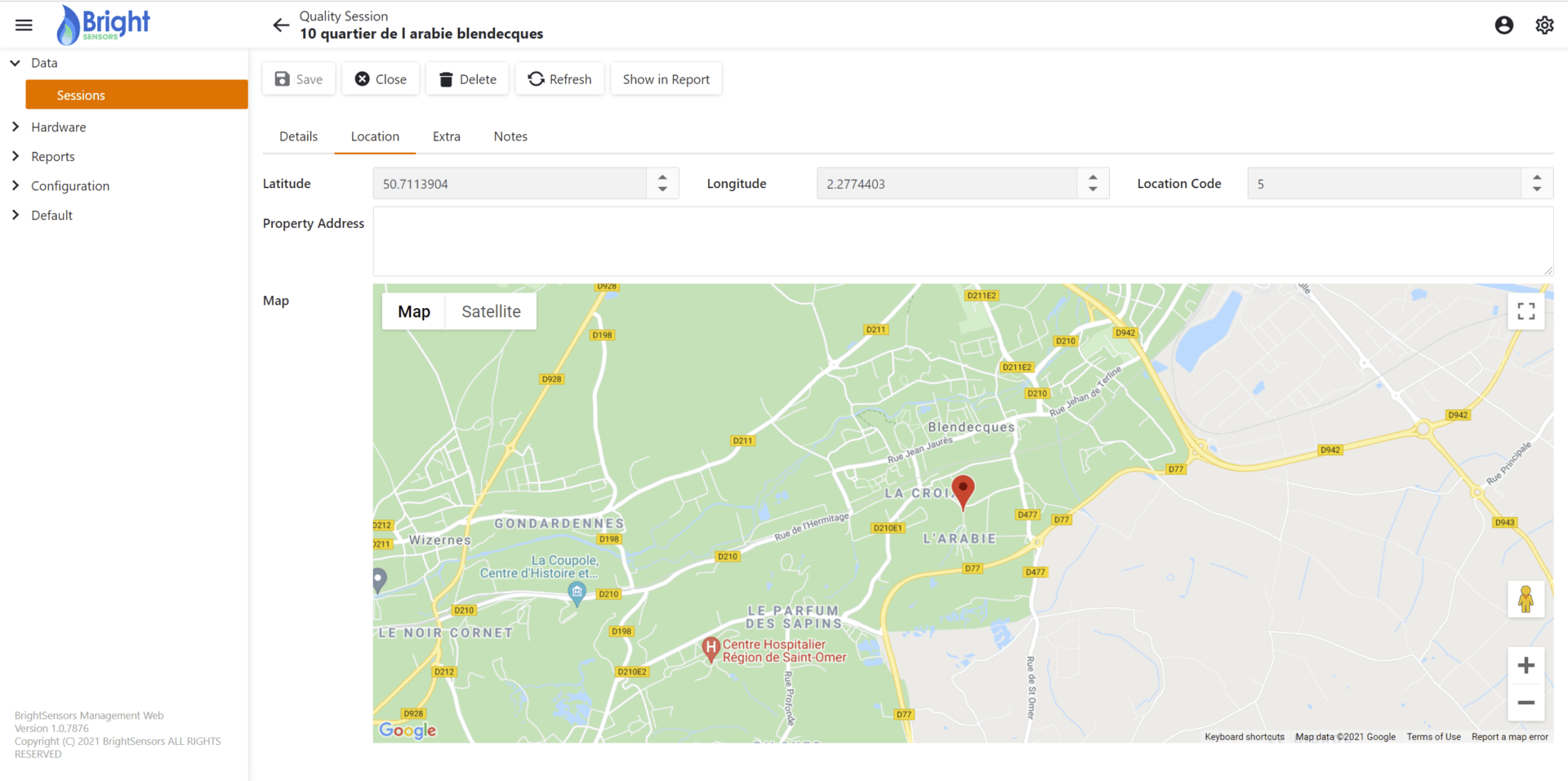

- Measurement data is collected and saved with the App and uploaded to our cloud service.
- Application areas: commissioning and tuning, periodic checks, energy allocation of any gas appliance.
The BlueEye™ Mobile is available in 4 different versions for specific accuracy and gas composition ranges:
- BlueEye™ Extended: Viscosity + TCD sensor
- BlueEye™ Renewable: Viscosity + TCD + CO2 sensors
- BlueEye™ Hydrogen: Viscosity + TCD sensors + H2 hardware
- BlueEye™ Ultragreen: Viscosity + TCD + CO2 sensors + H2 hardware
BlueEye™ Mobile – Description
- The compact and robust BlueEye™ Mobile has been designed for mobile and handheld use.
- Build in pressure regulator, purge line and flow restriction allows setup in minutes.
- Patented dynamic viscosity measurement principle combined with TCD and IR sensors.
- Continuous, fast response and highly accurate measurement.
- Wide composition range (Hs: 27.52 – 50.40 MJ/m3 at 15°C/15°C).
- Ultra-fast sampling rate, reporting gas properties: Hs, Hi, WIs, WIi, ρ, ρ rel., Z, AFR, s-AFR, MN, CO2 and H2
- Accurate Hydrogen measurement up to 30 mol% blends.
- Battery powered allowing up to 24h of continuous measurement, highly effective and very affordable.
- Single-hand operated shut-off quick couplings ensure easy, fast and safe connections to any gas source.
- Plug & Play operation and connectivity via Bluetooth® to dedicated iOS and Android Apps.
- Measurement data is collected and saved with the App and uploaded to our cloud service.
- Application areas: commissioning and tuning, periodic checks, energy allocation of any gas appliance.

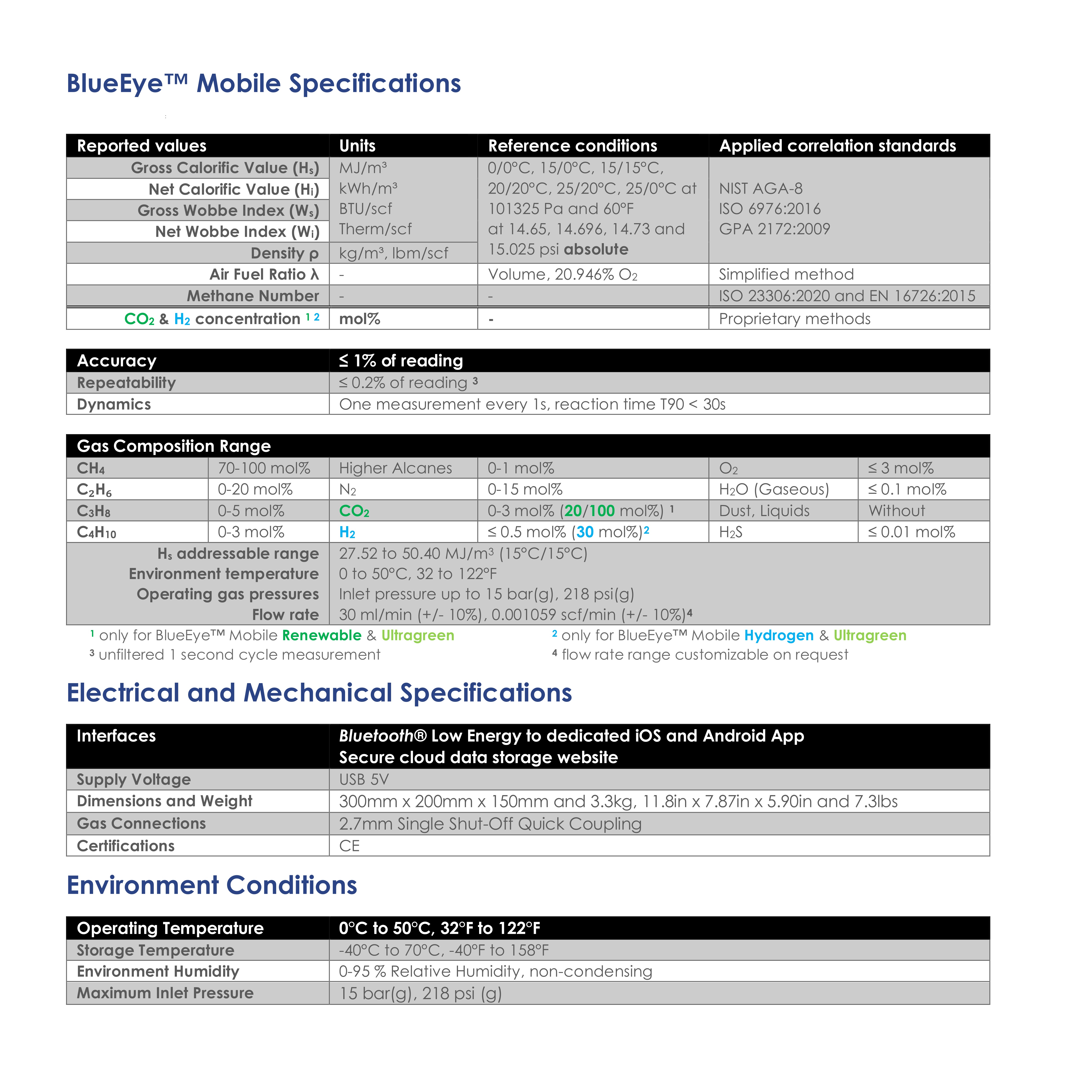

BlueEye™ Mobile – Specification
