    BlueEye™ Ex-D – Revolutionary change in the gas analyzer industry

    0:00 Introduction
    0:18 Sensor Cell
    0:49 Operating Ranges
    1:00 Dimensions
    1:12 Certifications
    1:26 Reference Conditions
    1:37 Units
    1:42 Reported Values
    2:03 Installation
    2:05 Mounting Position
    2:10 Cable Gland
    2:30 Gas Flow Direction
    2:43 Piping and Instrumentation Diagram
    2:53 Electrical Connections
    3:07 The 4-20 mA Current Loop (Installation)
    3:21 Modbus RS-485
    3:33 MicroSD Card
    4:19 Operation
    4:20 Startup BlueEye™ Ex-D
    4:35 LED Status
    5:23 Communication
    5:53 The 4-20 mA Current Loop (Operation)

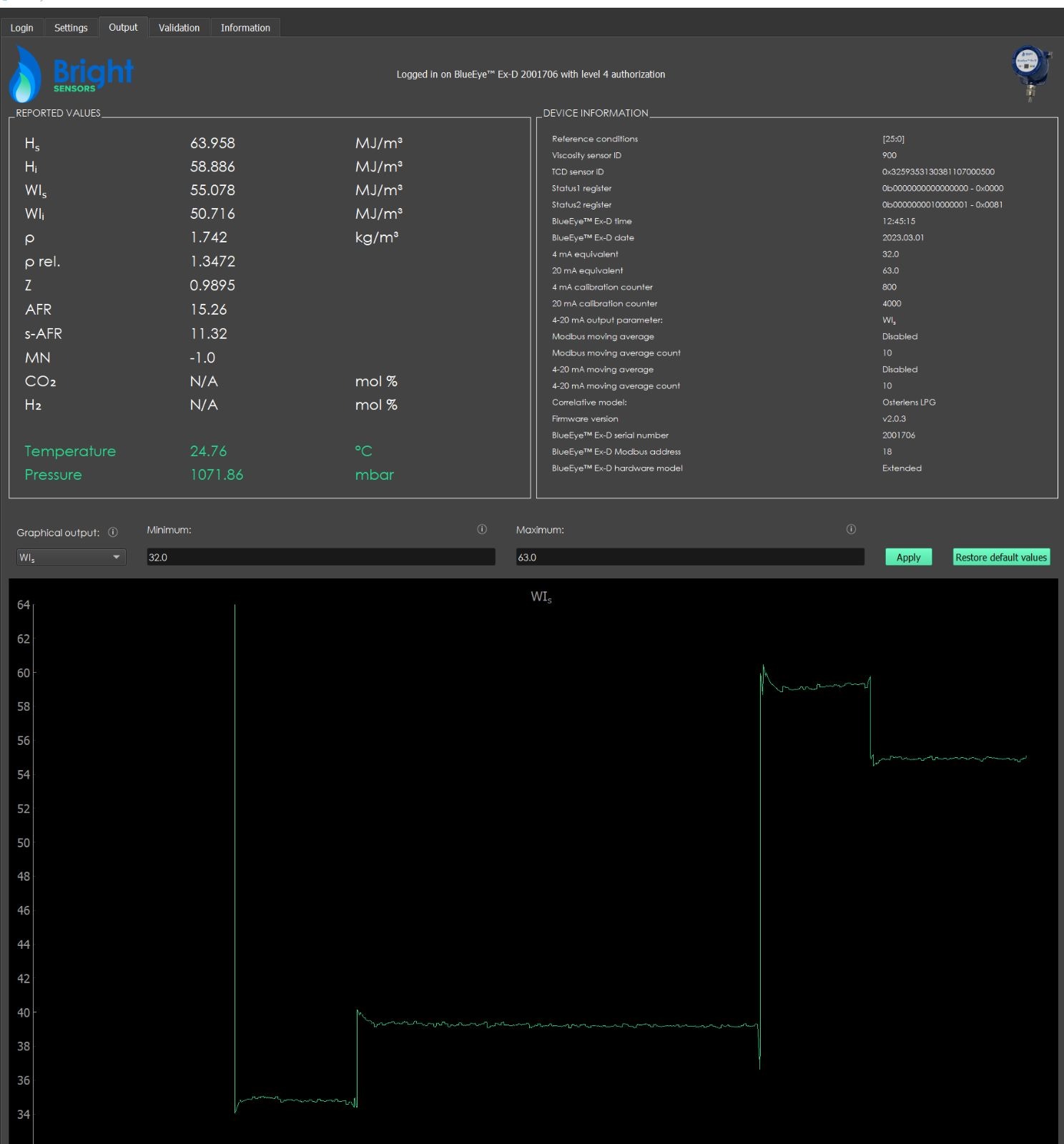

    6:20 MS Interface
    7:13 Modbus RTU
    7:29 Safety Precautions
    7:34 Liability Disclaimer

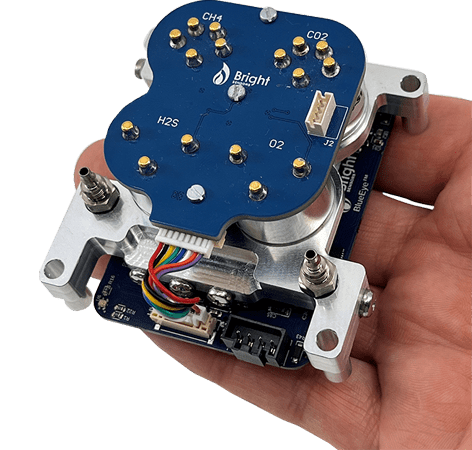

    BlueEye™ Ex-D – Description

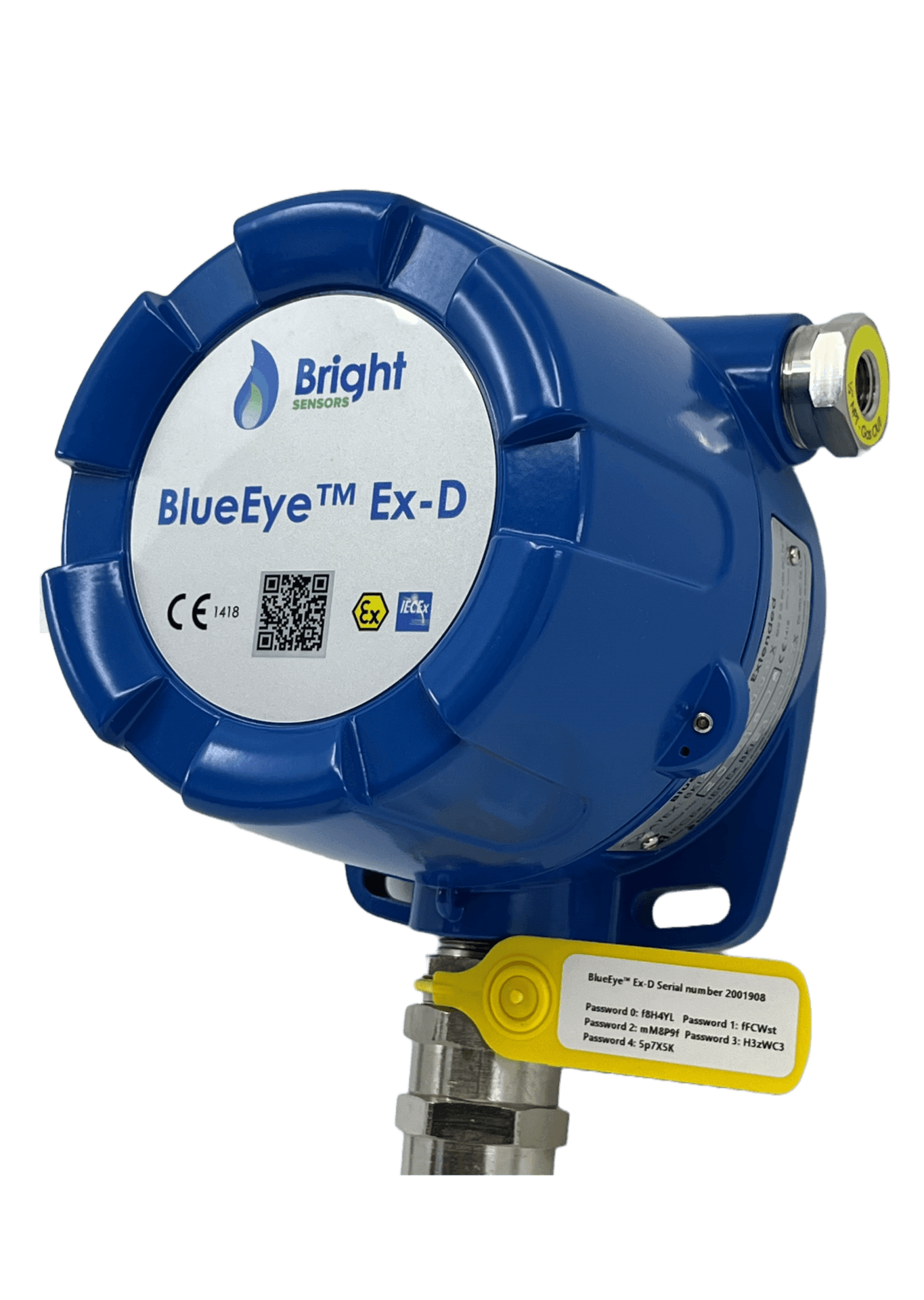

    • The analyzer BlueEye™ Ex-D is designed for stationary applications with industry grade communication.
    • Continuous, fast response and highly accurate measurement.
    • Wide composition range (Hs: 27.52 – 50.40 MJ/m3 at 15°C/15°C).
    • Patented dynamic viscosity measurement principle combined with TCD and IR sensors.
    • Accurate Hydrogen measurement up to 30 mol% blends.
    • No OPEX and costing 1/5 of an average Gas Chromatograph.
    • ATEX and IECEx certified. OIML R140 certification in progress.
    • Application areas: Biomethane injection, Hydrogen blending, Combustion control & monitoring.
    • Plug & Play operation through Windows Interface over Modbus-USB package.
    • Reported values: Calorific Value (Hs and Hi), Wobbe Index (WIs and WIi), Density (ρ), Compressibility (Z), Stoichiometric Air-Fuel-Ratio (s-AFR), Methane Number (MN), Carbon dioxide (CO2) and Hydrogen (H2) mol%

    The BlueEye™ Ex-D is available 4 different versions for specific accuracy and gas composition ranges:

    • BlueEye™ Extended:             Viscosity + TCD sensor
    • BlueEye™ Renewable:          Viscosity + TCD + CO2 sensors
    • BlueEye™ Hydrogen:            Viscosity + TCD sensors + H2 hardware
    • BlueEye™ Ultragreen:          Viscosity + TCD + CO2 sensors + H2 hardware

    BlueEye™ Ex-D – Description

    • The analyzer BlueEye™ Ex-D is designed for stationary applications with industry grade communication.
    • Continuous, fast response and highly accurate measurement.
    • Wide composition range (Hs: 27.52 – 50.40 MJ/m3 at 15°C/15°C).
    • Patented dynamic viscosity measurement principle combined with TCD and IR sensors.
    • Accurate Hydrogen measurement up to 30 mol% blends.
    • No OPEX and costing 1/5 of an average Gas Chromatograph.
    • ATEX, IECEx and OIML R140 certification in progress.
    • Application areas: Biomethane injection, Hydrogen blending, Combustion control & monitoring.
    • Plug & Play operation through Windows Interface over Modbus-USB package.
    • Reported values: Hs, Hi, WIs, ρ, ρ rel., Z, AFR, s-AFR, MN, CO2 and H2



    The BlueEye™ Ex-D is available 4 different versions for specific accuracy and gas composition ranges:

    • BlueEye™ Extended:             Viscosity + TCD sensor
    • BlueEye™ Renewable:          Viscosity + TCD + CO2 sensors
    • BlueEye™ Hydrogen:            Viscosity + TCD sensors + H2 hardware
    • BlueEye™ Ultragreen:          Viscosity + TCD + CO2 sensors + H2 hardware

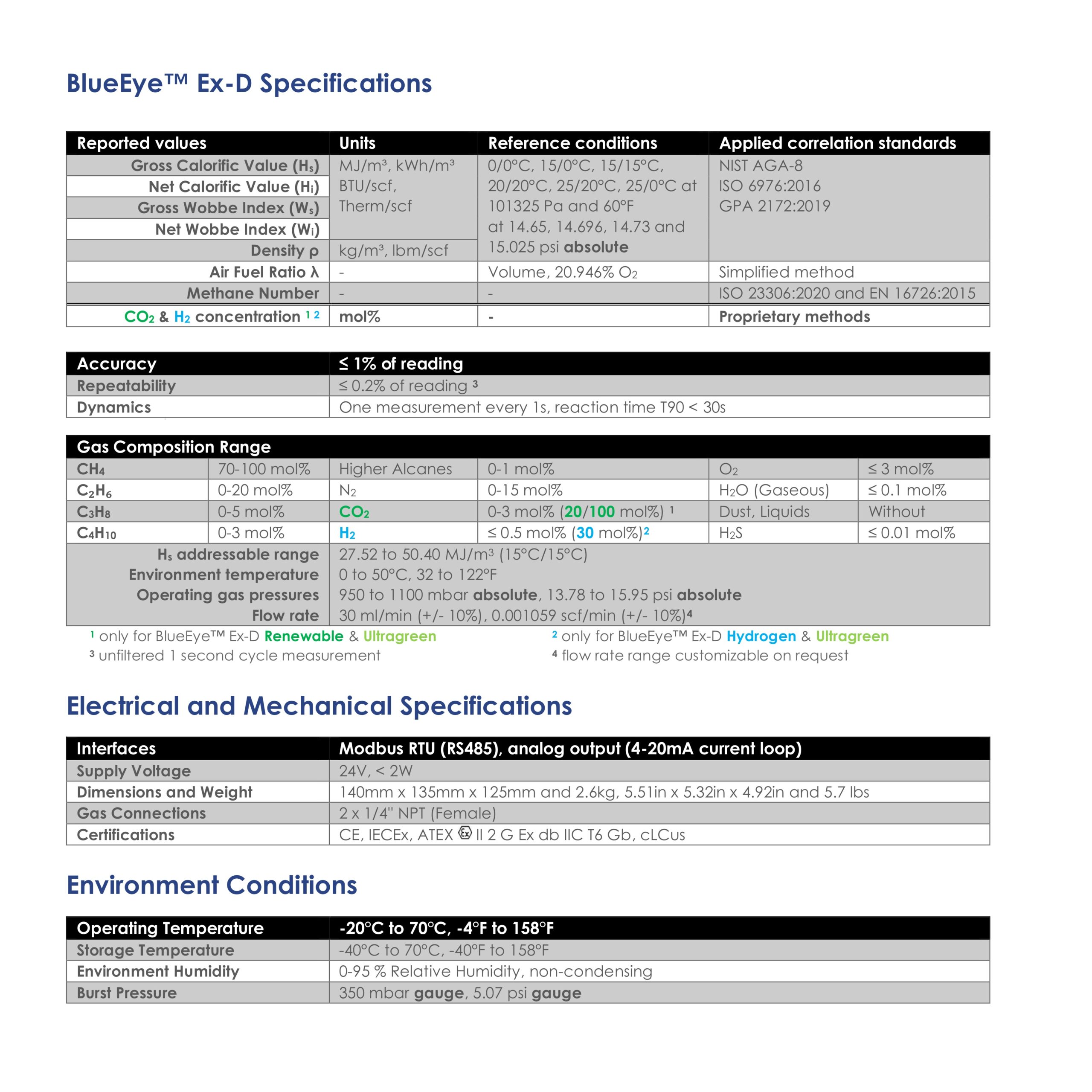

    BlueEye™ Ex-D – Specification
